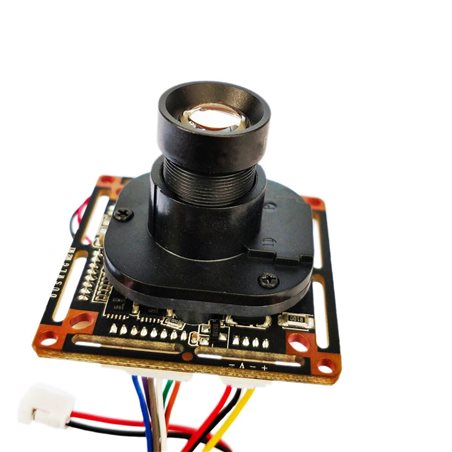

Mini AHD Camera, 2MP FH8536H DSP Surveillance CCTV Camera, 8mm Lens AGC Type Security Camera with UTC and OSD Function
$26.00
F23 mega HD image sensor, AHD/TVI/CVI/CVBS, effective resolution is up to 1932*1088;F23 mega HD image sensor, AHD/TVI/CVI/CVBS, effective resolution is up to 1932*1088;
OSD support 9 different languages, with Exposure/ White Balance, 3D-NR/image enhancement/privacy protect /motion detection functions;
Adopt FH8536H(V30H) DSP, with OSD function (mirror image,color/white black,PAL/NTSC switch);
AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu;It can add UTC function, 4-in-1 output, OSD adjust freely;
Power(600W) Video (2KV)dual lightning protection design, OSP antioxidant PCB, small size 32*38 double board design.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Product Parameter:
Image Sensor: 1/2.9 inches F23
Effective Resolution: 1932(H)*1088(V)
Effective Pixels: 2MP
Signal System: PAL/NTSC(OSD switch)
Day Night Mode: External control(default)/Auto/Color/White&black(OSD switch)
S/N Ratio: ≥50dB
Minimum Illumination: 0.1LUX
BLC: AUTO
Auto Electronic Shutter(AES): AUTO/ 1/50（1/60）-1/50,000sec
Auto White Balance(AWB): AUTO
IR Control Voltage:OFF: DC 0V / ON: DC 3V-8V
OSD Language(9): English/Simplified Chinese/Traditional Chinese/Italian/Spanish /Portuguese/Polish/Russian/French
Video Output: AHD/TVI/CVI/CVBS
Video Record Occupation: 1min≈38MB(4mm lens)
Working Voltage: DC12V/67mA ±6mA(Wide Voltage9V-18V)
Working Environment: -20℃ --- 50℃
Lens Parameter:
Resolution: 2MP
Focal length: 8.0mm
Image Size: 1/2.7"
Aperture: F2.2
Field of View: 45°
Package Included:
1 x CCTV Camera Module
1 x Adaptor
