520tvl 5 Metres View Night Vision Mini Led Camera+1 Year Warranty (3g, 0lux /5m, NTSC&PAL) Mini Camera
$48.00
520tvl 5metres view night vision mini led camera+1year warranty(3g,0lux /5m,NTSC&PAL),mini camera
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

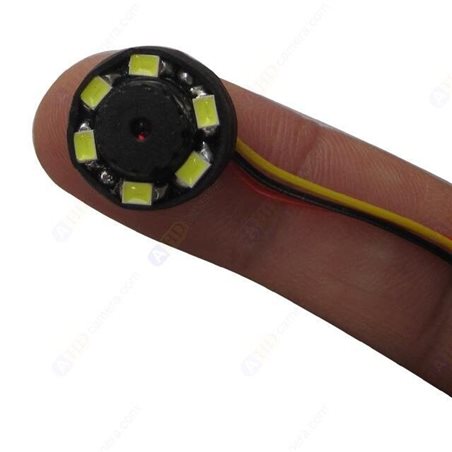

520tvl 5metres view night vision mini led camera
Features & functions
It's a ultra small high definition CCTV camera with excellent night vision.Size is 14.5x14.5x15.5mm only, Weight is 3g! Very easy to install.Minimum illumination is 0.0lux/5m, which can view clearly in complete darkness.Full TV system. Applicable worldwide. Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.
Specificaitons:
| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC: 656(H) x 492 (V) | PAL: 786(H) x 576 (V) |
| SENSOR DIMENSION | 4.75mm(H) x 3.55mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SENSITIVITY | 0.00Lux/3m | |
| LENS & VIEW ANGLE | 0.5mm F2.0 / 55 | |
| LAMP TYPE | LED, 6 PCS | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| SIZE (L x W x H) | 14.5mm x 14.5mm x 15.5mm | |
| WEIGHT | 8g | |
| WORK CURRENT | 207-140Mah | |
| POWER REQUIREMENT | DC 3.3V-6V | |
| OPERATING TEMPERATURE | - 10 ° C ~ +50°C less than 90% RH | |
| Connection | PIN1 Red DC5V PIN2 Black GND PIN3 Yellow VIDEO OUT | |
Package Contents
1 x Mini Camera
1 x RCA or BNC Cable ( If no choice, default RCA)
1 x AC Adapter
